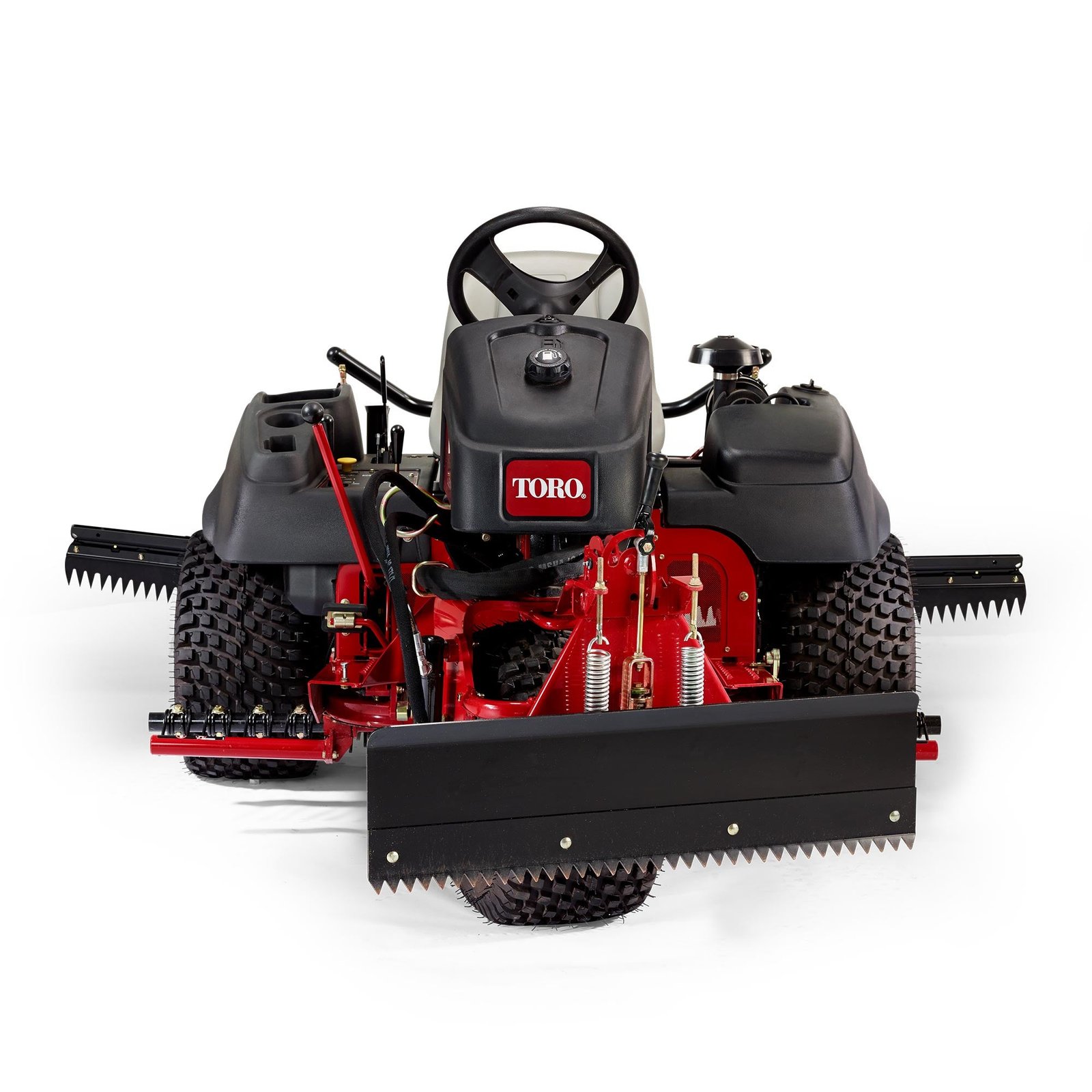

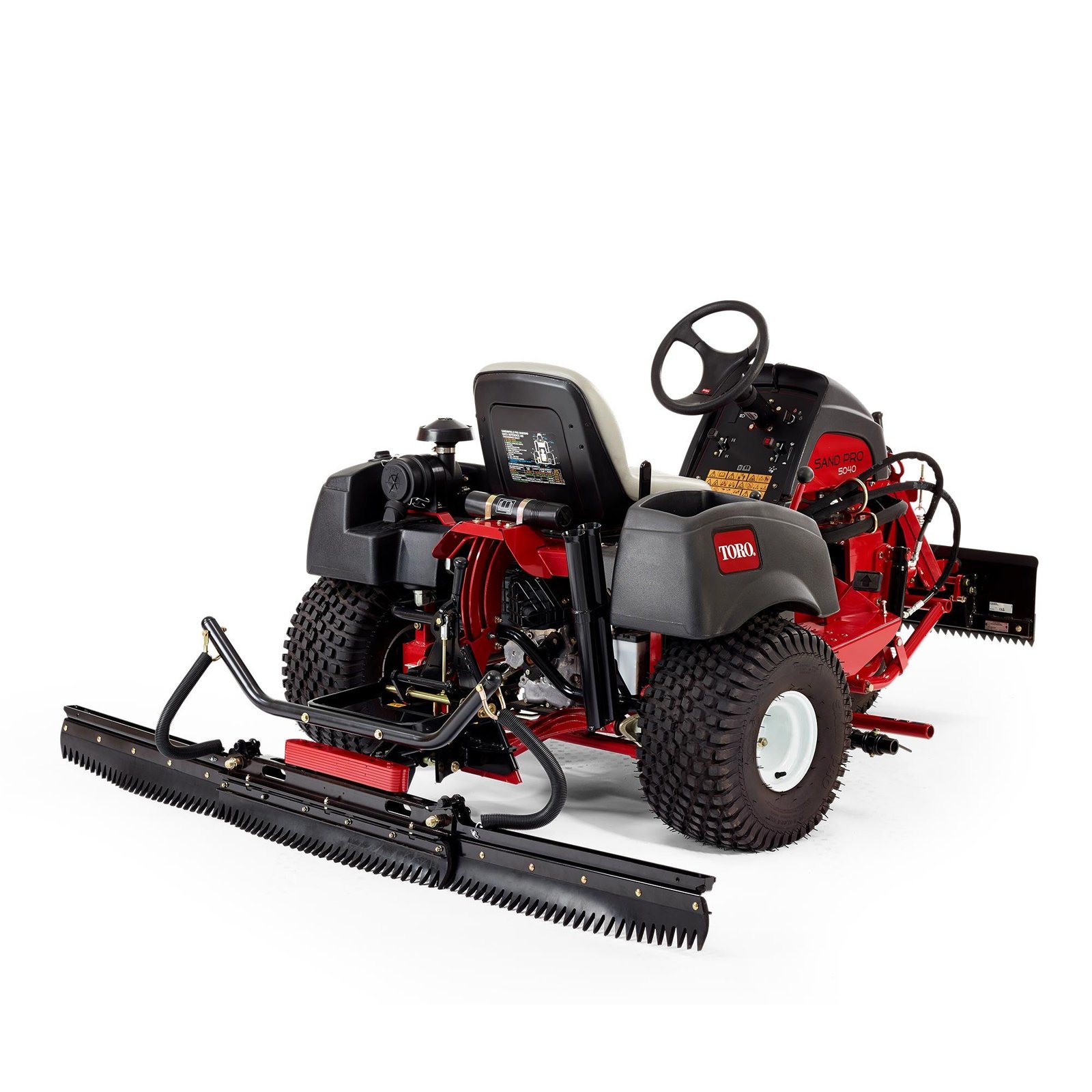

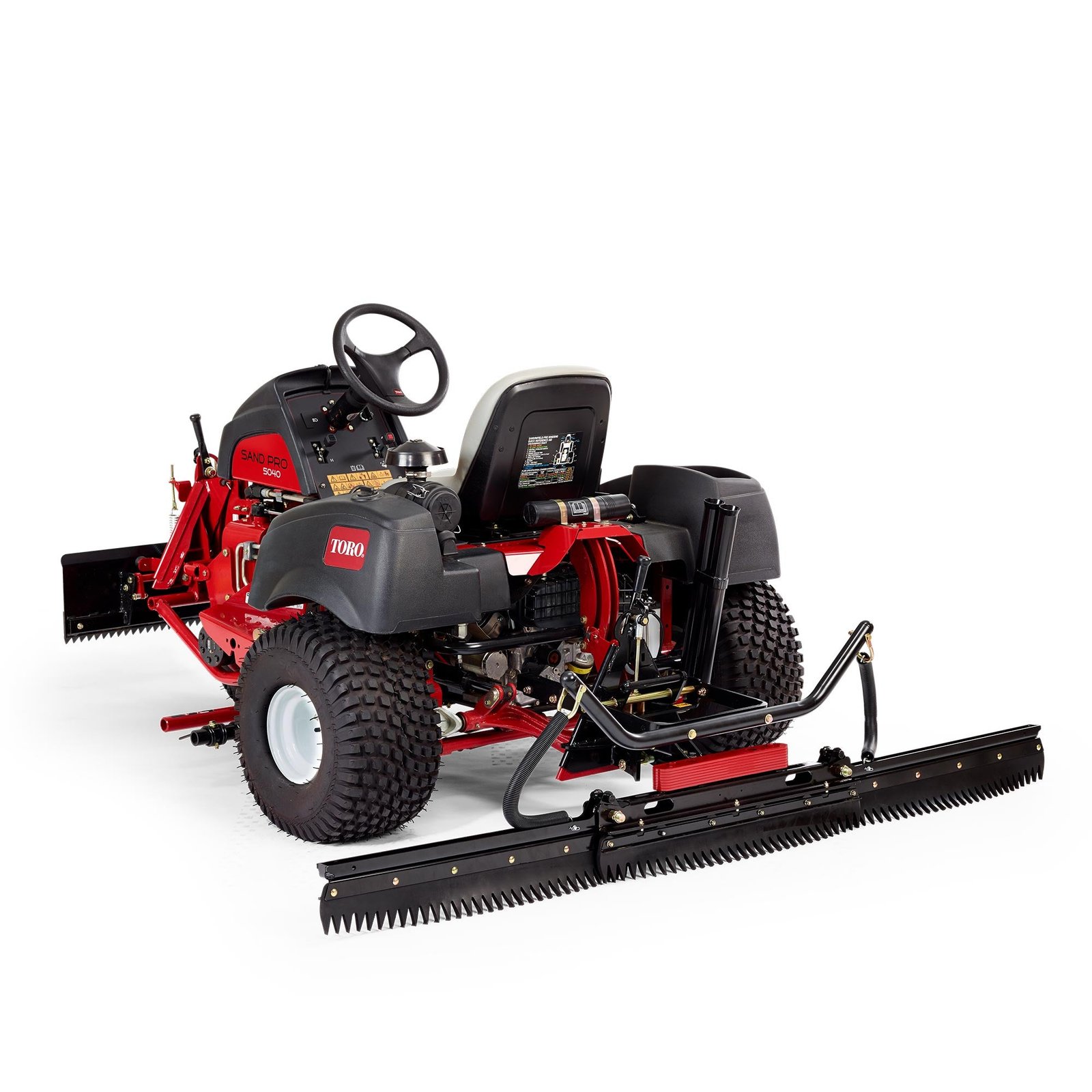

The Sand Pro® 5040 is the definition of versatility and function. The Quick Attach System™ (QAS) for front, mid and rear attachments allows for under-a-minute attachment changes. With a powerful 18 hp (13.4 kW) engine and hydraulic power steering, be more productive with over 20 attachments, including the Flex Blade which raises and lowers hydraulically. Each attachment was specifically designed to take the operator influence out of the equation for high performance and a consistent surface finish.
Air Filter: Remote mounted 3-phase Donaldson® air cleaner
Battery: 12V
Controls: Hand operated choke, throttle, and hydraulic control for raising/lowering with float. Foot pedal controls traction forward/reverse speed. Front and rear hydraulic lift and lower controls.
Cooling System: Air Cooled
Displacement: 570cc (34.8 cu. in.)
Frame: Tricycle vehicle with welded rectangular tubular steel frame construction. Rear engine placement.
Fuel / Power Source: Gasoline
Fuel Capacity: 5.0 gallon (18.9 liter)
Gauges/Instrumentation: Hour Meter
Ground Clearance: 6.0″ (15.2 cm)
Ground Speed – Forward: 0 – 10 mph (0 – 16 km/h)
Ground Speed – Reverse: 0 – 5.0 mph (0 – 8.0 km/h)
Height: 45.25″ (114.9 cm)
Hydraulic Oil: Toro PX Hydraulic Oil; 7.0 gallon (26.4 liter) system capacity. Polyethylene reservoir to reduce corrosion. 10 (nominal) micron replaceable cartridge.
Interlock: Neutral interlock switch, seat switch.
Oil Capacity with Filter: 1.75 quart (1.8 liter)
Optional Accessories: QAS A-Frame Assembly, 400-Hour Filter Maintenance Kit, Rear Remote Hydraulics, Selectable Front and Rear Hydraulic Kit, Variable Orifice Kit, Light Kit, Speed Control Kit, Hitch/Tow Bar, Front Weight Kit, Smooth Tire, Turf Tire
Overall Width: 58″ (147 cm)
Parking/Service Brakes: Hand actuated brake lever.
Power Steering: Yes
Power Train (Engine Description): Vanguard®, V-twin cylinder, 4-cycle, OHV, air-cooled, gas engine with cast iron sleeves. 18 hp (13.4 kW) at 3600 rpm. Displacement: 34.8 cu. in. (570 cc). Electronic ignition. Full pressure lubrication, oil filter. Base mounted engine and pump with 4 isolation mounts.
Product Length: 67.5″ (171.5 cm)
Rear Attachment Hydraulic Lift: Standard
Sound Level: 83 dB(A) at operator ear, under normal operating conditions
Starting: Key Start
Steering System Description: Hydraulic power steering. 15″ (38 cm) diameter steering wheel.
Tires – Front: 22″ x 11″ – 8″, 2-ply, Knobby Tread
Tires – Rear: 22″ x 11″ – 8″, 2-ply, Knobby Tread
Traction Drive: Direct driven hydrostatic variable displacement piston pump to 3 hydraulic motors for 3WD. Large, front mounted hydraulic cooler and fan. Foot pedal control, forward/reverse. Patented Series/Parallel hydraulic traction system keeps three wheels working together, virtually eliminates spin-outs.
Traction Drive (System): 3WD
Vehicle Configuration: Standard
Weight: 930 lbs. (421.8 kg), net weight less fluids
Wheelbase: 42.75″ (108 cm)
