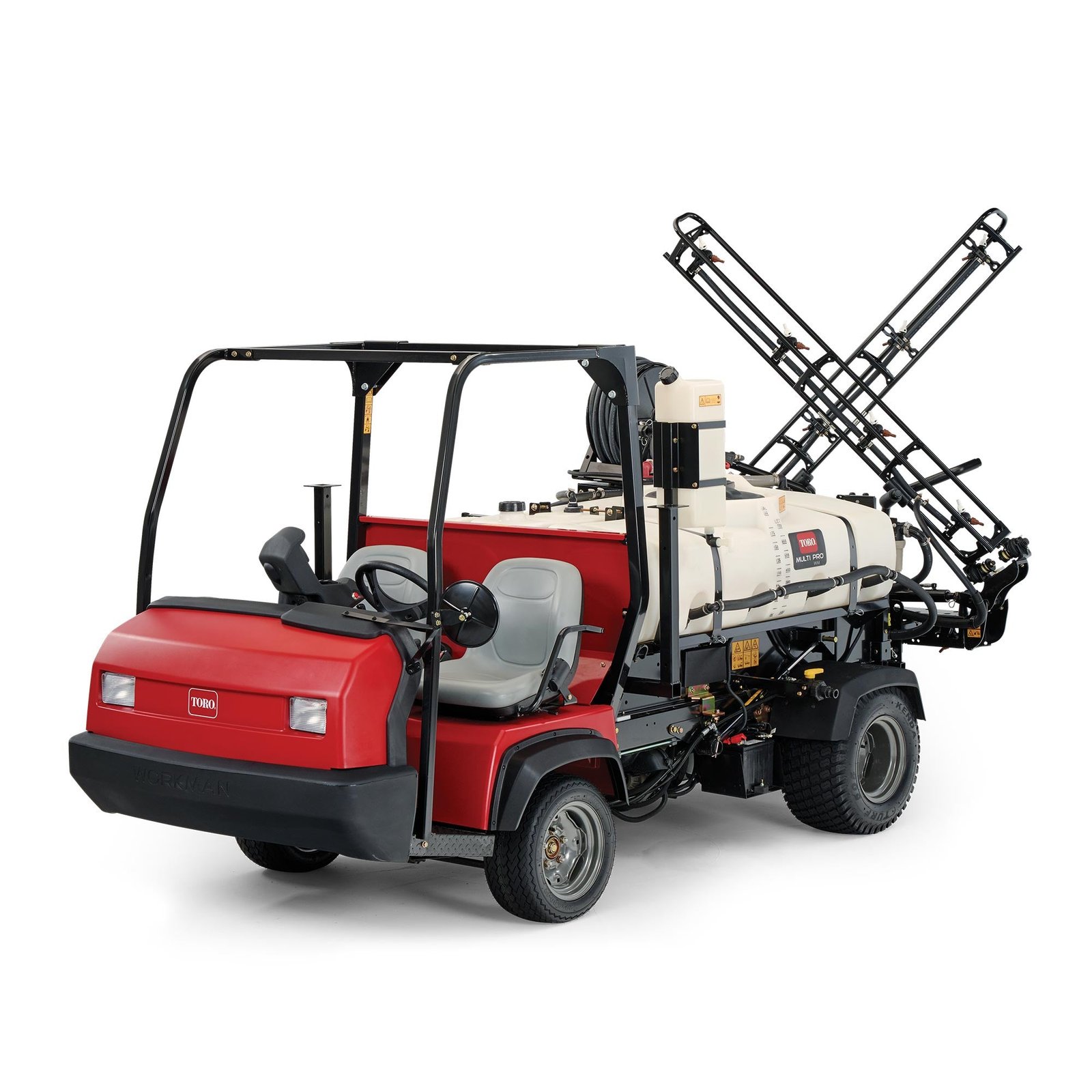

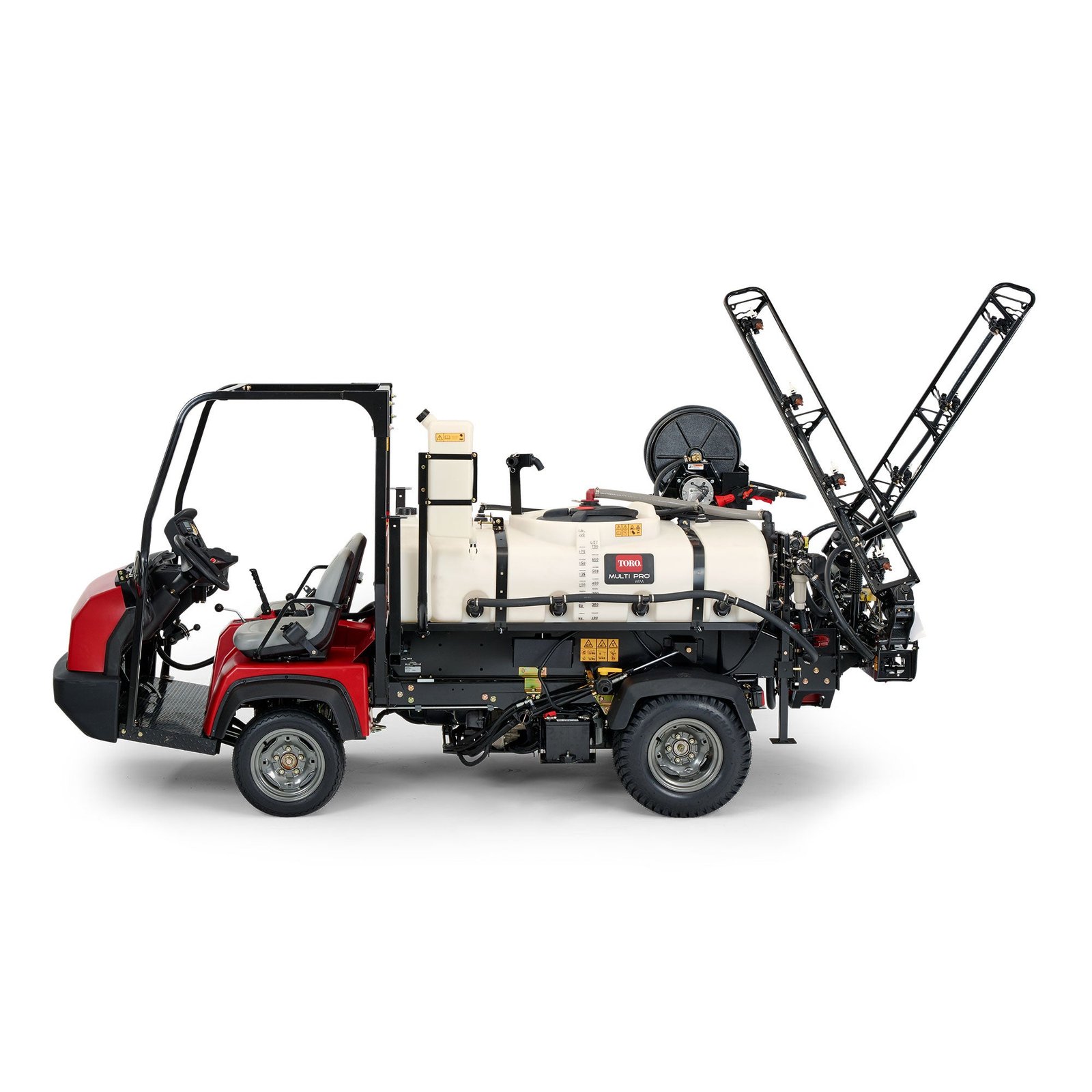

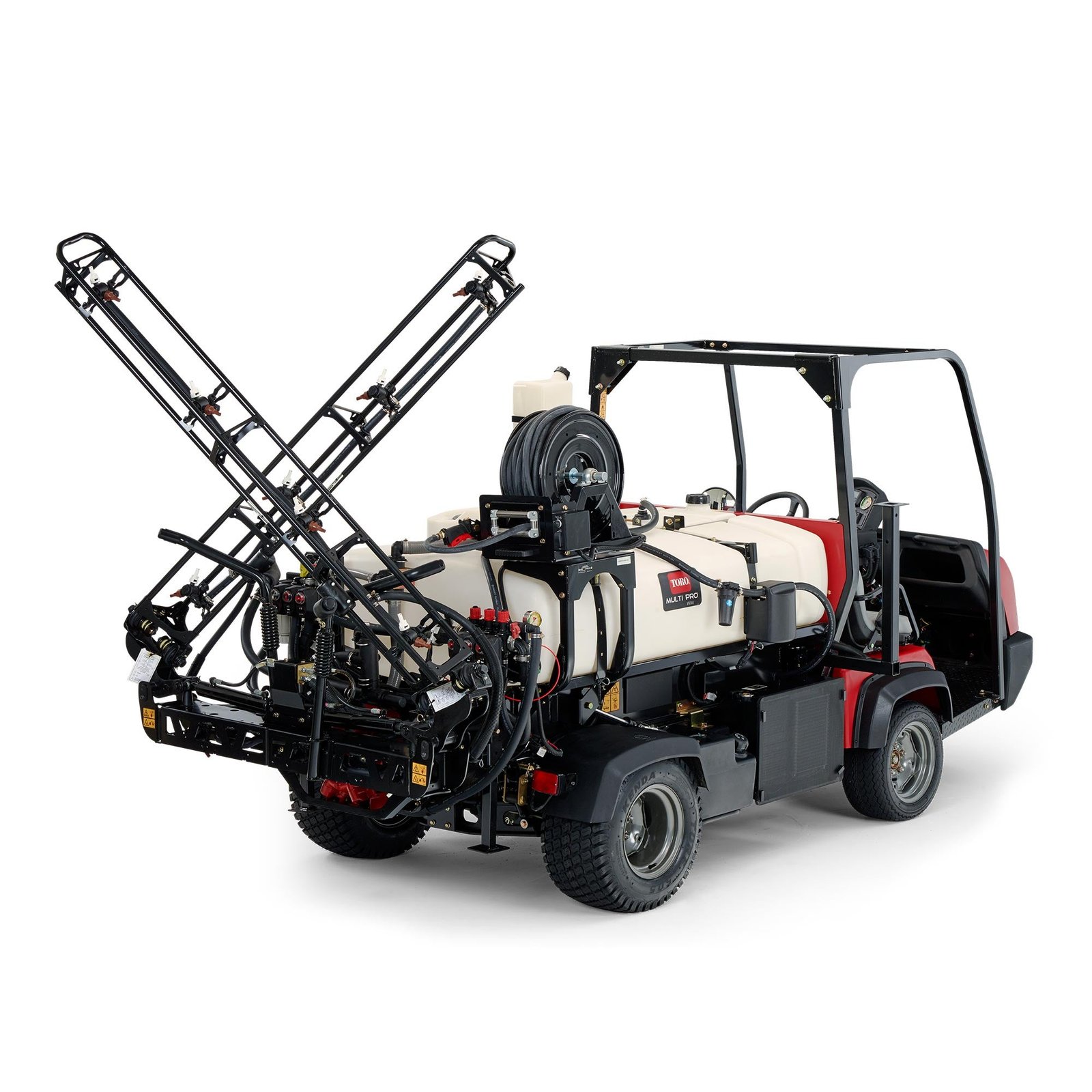

Multi Pro® WM Turf Sprayer

The Multi Pro WM spray system for Toro’s Workman® HD Series utility vehicles leverages the advanced spray system capability of Toro’s Multi Pro line and combines functionality with cutting-edge and intuitive sprayer controls. The result is the most advanced, efficient and accurate 200-gallon bed-mounted sprayer accessory for a utility vehicle on the market. Aggressive agitation, faster response times, consistent and accurate application rates, and intuitive rate set up, makes this the sprayer that has it all.

Agitator: Four side-mounted jet agitation nozzles for full tank agitation.

Boom Actuators: Heavy Duty hydraulic lift actuators with nitro-steel plated shafts; 1-3/4″ Bore x 10.06″ Stroke. Add spray actuator specifics

Boom Assembly: 18.5′ (5.6 m) three section, triangular truss style open booms. Optional 20.5′ (6.25 m) booms available. Eleven nozzle turrets, triple turret-mount, quick-disconnect with diaphragm check valves. Twelve nozzle turrets with optional kit.

GeoLink® Capable: No

Optional Accessories: NozzAlert™, Pro Foam™marking kit, Pro Foam™, CleanLoad™ eductor kit, fresh water rinse kit, electric hose reel kit, Ultra Sonic Boom™ kit, covered boom kit, air induction turbo twin jet nozzles, contact & systemic nozzles

Rated Capacity: 200 U.S. gal. (757.1 L)

Solution Tank: High-density, impact-resistant polyethylene with large 16″ (41 cm) fill opening, tapered bottom and sump with drain.

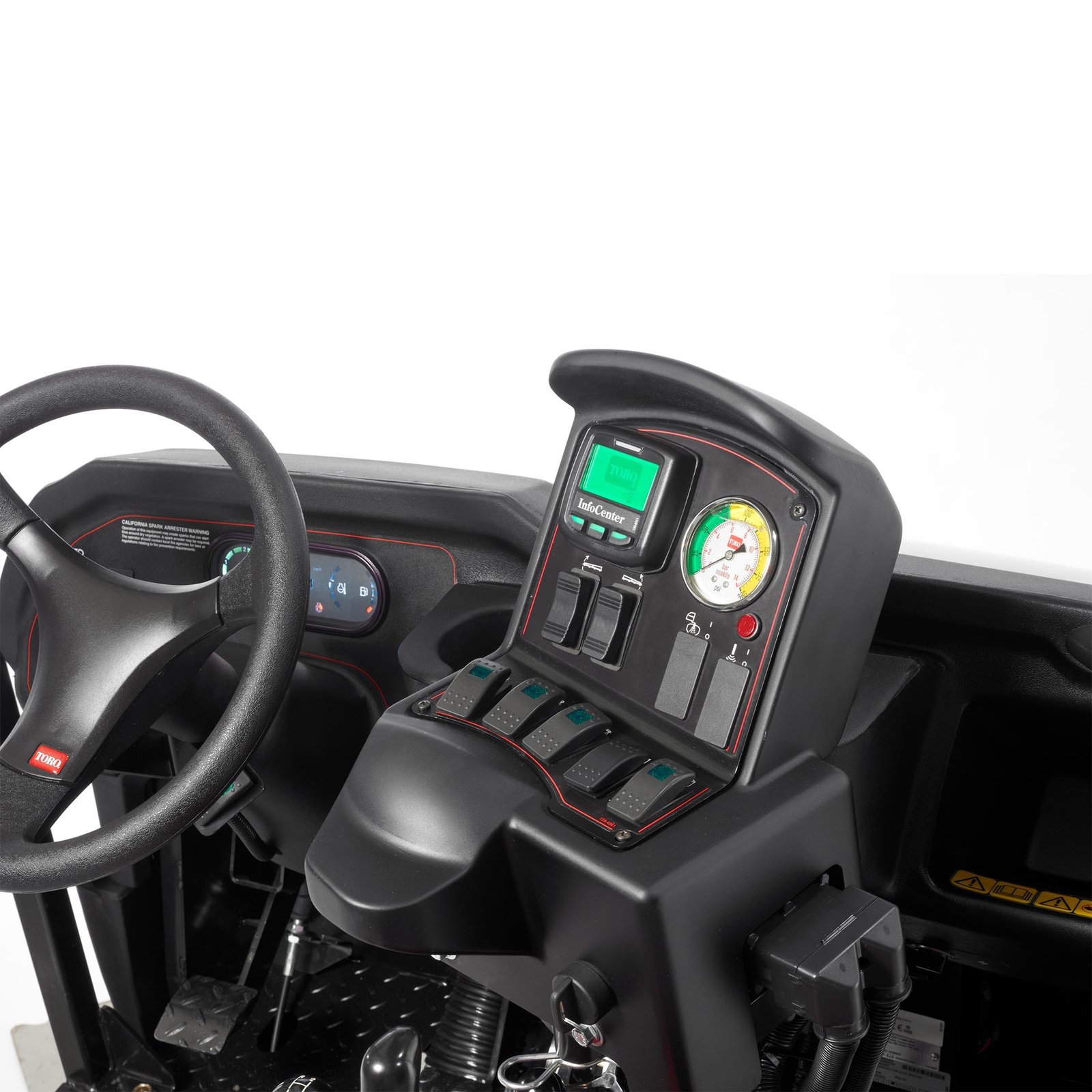

Spray Controls: Spray pump control switch, agitator jet switch, rate switch, individual boom On/Off switches, boom actuator switches, indicator lights on pump, agitation and boom switches, throttle lock.

Spray Pump: Hardi 364/10.0, 6-diaphragm positive displacement pump w/1″ (2.5 cm) input shaft; input speed 0~540 rpm; Flow rate 45 gpm (170.3 lpm) @ 40 psi (540 rpm).

Valve Actuators: Eleven nozzle turrets, triple turret-mount, quick-disconnect with diaphragm check valves. Twelve nozzle turrets with optional kit.
