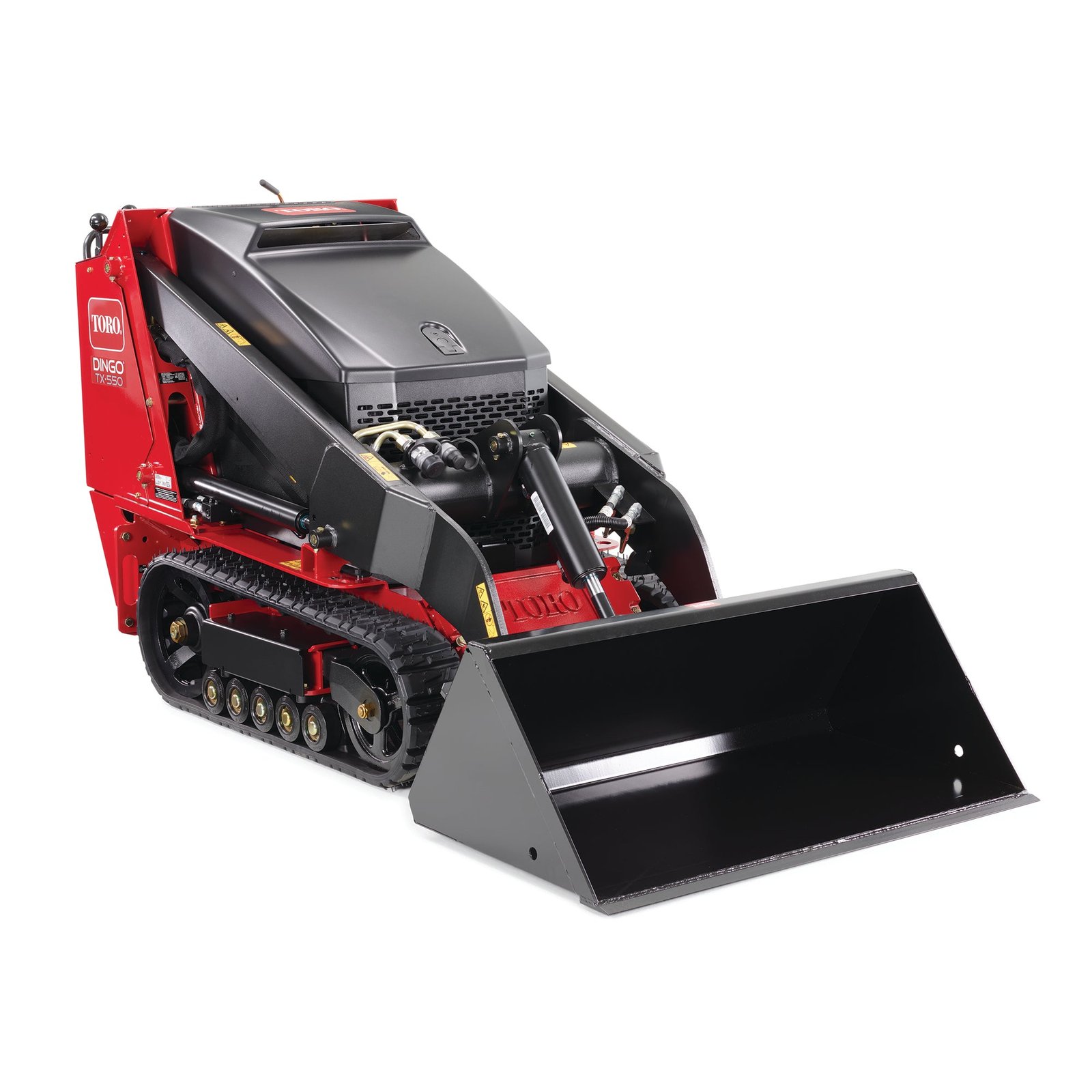

Dingo® TX 525 Track Loader, Narrow
$700.00
89 in stock
Diesel. Done Right.Our diesel Dingo® TX models deliver what customers want: extra torque, longer engine life, and increased hydraulic flow for enhanced performance of ground-engaging attachments. The TX 525 offers amazing hydraulic power, delivering 13.8 gpm and pumping 24 hp to the attachments, yet has a ground pressure as low as 5.2 psi. And because they’re part of the full-line family, these diesels are compatible with all of Toro’s compact utility loader attachments.
Air Filter: Two-stage, heavy-duty, remote
Cooling System: Liquid Cooled
Dump Angle: 38 deg
Dump Height: 46.1 in. / 117.0 cm
Engine Displacement: 901 cc (55 cu. in.)
Engine Horsepower: 24.8 hp (18.5 kW) @ 3,200 rpm
Engine Make: Kubota
Engine Model: D902E3B
Fuel Tank: 6 gal. / 22.7 L
Fuel Type: Diesel
Ground Clearance: 4.6 in. / 11.56 cm
Ground Pressure: 5.2 psi
Ground Speed – Forward: Up to 4.5 mph / 7.2 km/h
Ground Speed – Reverse: Up to 2.0 mph / 3.2 km/h
Height: 46.1 in. / 117.0 cm
Height – With Bucket: 46.1 in. / 117.0 cm
Hinge Pin Height: 65.8 in. / 167.1 cm
Hydraulic Flow – Auxiliary: 13.8 GPM
Hydraulic Flow – Traction: 16.9 GPM
Hydraulic Pressure: 3,000 psi
Length: 70.7 in. / 179.5 cm
Length – With Bucket: 92 in. / 233.6 cm
Loader Arms: Radial
Max Operating Height: 90.1 in. / 228.8 cm
Oil Capacity: 3.8 qt / 3.6 L
Rated Operating Capacity*: 553 lbs / 250.8 kg
Reach – Fully Raised: 21.8 in. / 55.3 cm
Reservoir Capacity: 10 gal. / 37.8 L
Tip Capacity: 1,580 lbs / 751 kg
Track Length: 96.6 in. / 245.3 cm
Track Width: 5.9 in. / 14.9 cm
Tracks: Sprocket-drive, 10 road wheels per side
Traction: Dual Hydrostatic Pump
Weight: 1,904 lbs / 863.6 kg
Wheelbase: 31.2 in. / 79.2 cm
Width: 33.7 in. / 85.5 cm
Width – With Bucket: 33.7 in. / 85.5 cm
