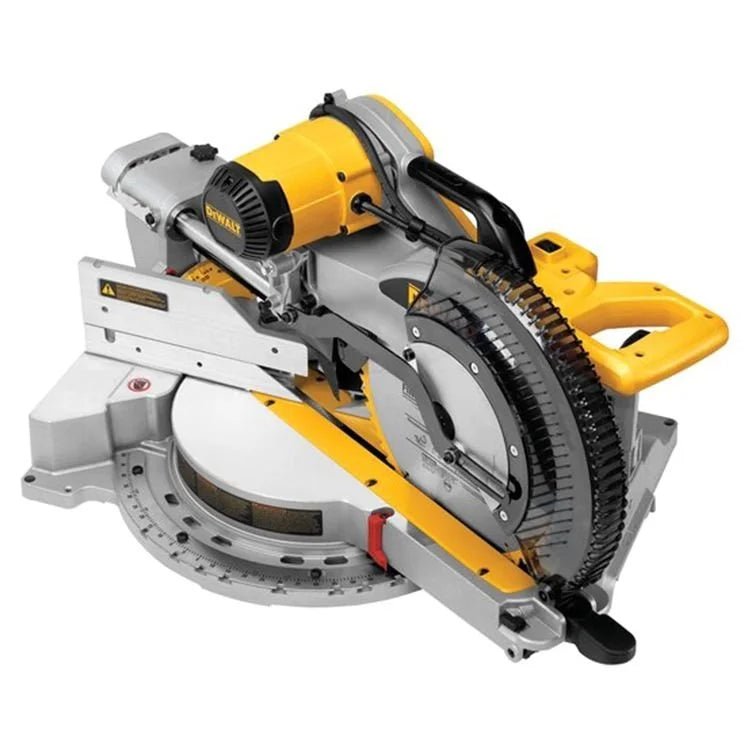

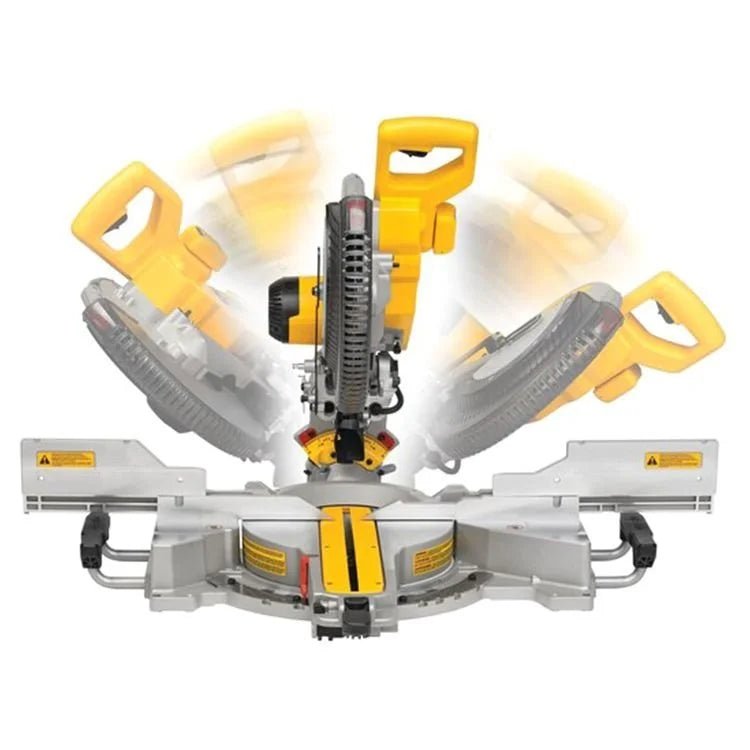

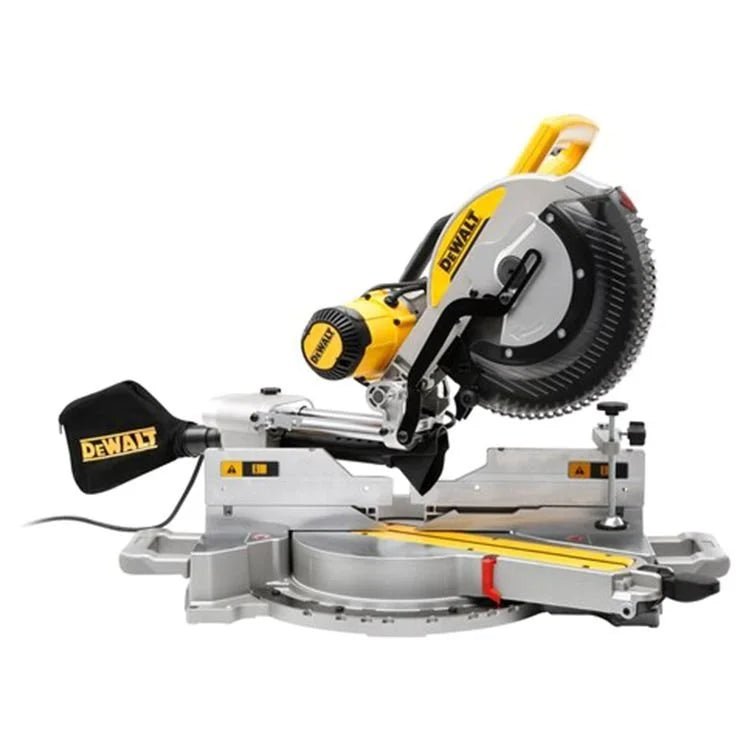

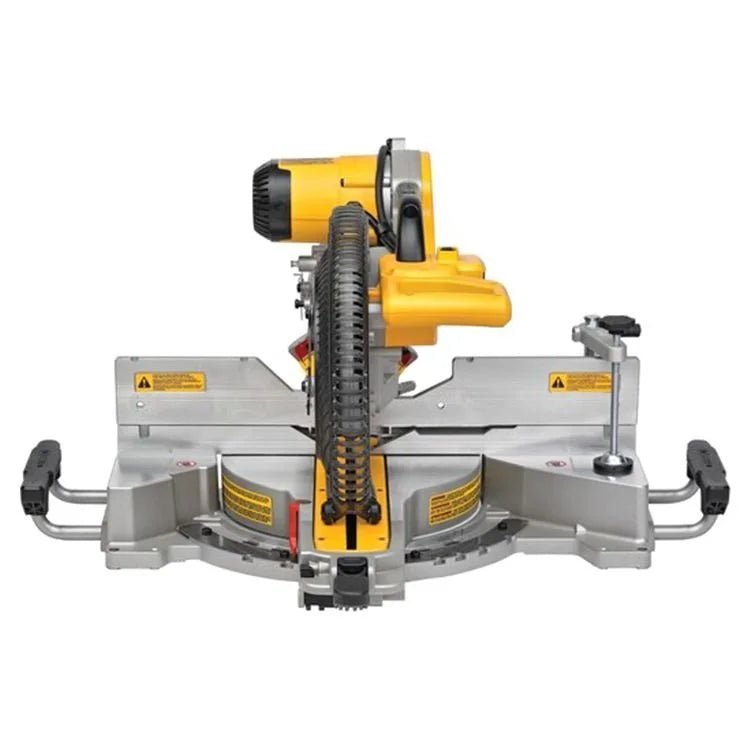

The 12″ double bevel sliding compound miter saw has a 15 Amp motor delivers extended power and durability and integrated XPS crosscut positioning system for adjustment-free, accurate cut line indication for better accuracy and visibility. Tall sliding fences support 7-1/2″ of nested crown and 6-3/4″ of base molding vertically against the fence while easily sliding out of the way for bevel cuts. Exclusive back fence design cuts up to 2×14 dimensional lumber at 90 degree increased miter capacity of 60 degree (r) and 50 degree (l) features durable stainless-steel miter detent plate with cam lock for repeatable accuracy with easy adjustments.
Manufacturer
DeWalt
Condition
New
UPC
85911231602
Features
1100 Watt motor designed for heavy duty applications
Super-efficient dust collection system captures over 75% of dust generated
Adjustable stainless-steel miter detent plate with 10 positive stops improves productivity and ensures cutting accuracy
Oversized bevel scale makes bevel angle adjustments accurate and easy
Compact, lightweight design (58 lbs) allows for easy transport and storage
Cam lock miter handle with detent override deliver quick and accurate miter angles
Dual horizontal steel rails with innovative clamping mechanism and linear ball bearings deliver an accurate, durable and compact saw
Innovative gearbox and belt-drive design increases vertical cutting capacity
Includes
Blade Wrench
Dust Bag
Vertical Material Clamp
12″ Carbide Blade
Electric Brake
No
Variable speed
Yes
Application
Cutting Stair Tread Up to 14″ Cross Cut (with Back Fence), Cutting Crown and Cutting Base Molding Vertically Nested Against Fence, Cutting 2x Material and Precision Cuts for Woodworking
Type
Miter Saw
Corded or Cordless
Corded
Accessories Included
Dust Collection
Water Resistant
LED Light
Bevel Angle
49 Deg /49 Deg
Uncertainty K1 (Vibration)
1.5 m/s2
Diameter
12″
Motor Amperage
15 Amp
No Load Speed (RPM)
3,800 RPM
Crown Molding Capacity
7 1/2″
Base Molding Capacity
6 3/4″
Cutting Capacity at 90 Degree
2″ x 14″
Cutting Capacity at 45 Degree
2″ x 10″
Miter Angle
60 Deg (Right) and 50 Deg (Left)
Wattage
1675 W
Worklight
3.3 V
Power Supply (Input)
120–240 V AC; 50 and 60 Hz
Power Supply (Output)
5 V DC; 0.45 A
Operating Temperature
14 Deg F to 104 Deg F
Storage Temperature
-22 Deg F to 176 Deg F
Cord Length
6 ft
Height
19.5″
Width
23″
Depth
32.33″
Weight
56 lbs
Warranty
3 Years
